      CNC machining a wide range of precision products is our specialty.

AS AS ISO ITAR   Cap Catia Verisurf MasterCam Rhino

Drill Jigs & Drill Fixtures

Tool

Machining Capabilities

  • High Speed 3 and 5-axis machining
  • Tight Tolerance
  • Fast Turnaround
  • Competative Pricing

+ Learn More ...

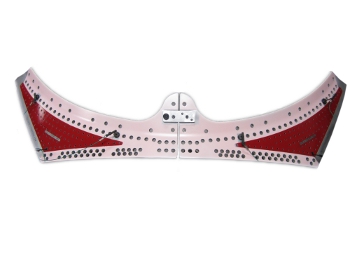

Assembled, color coded and inspected tooling for drilling operations: Turnkey products, exceeding your needs and expectations.

Assembly Jigs & Lifting Equipment

Tool

Tooling Types

  • Assembly Jigs
  • Machining Fixtures
  • Component Holding Fixtures
  • OHME & Lifting Tools
  • Handling & Turnover Tooling
+ Learn More ...

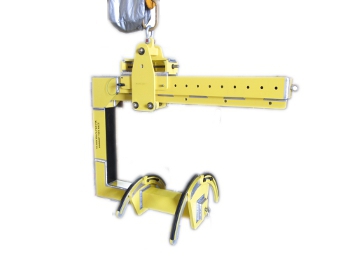

OHME - Overhead moving equipment manufacture and proofloading:
Assemblies manufactured to the most stringent specifications in the business.
Class I welds proofloaded and inspected to meet or exceed customer requirements.

Wingmate Assembly Tool

Top quality and beautifully finished tooling at competative pricing with short lead times:
We can build to your design or utilize our in-house design services. Designs available in native Catia format. Wing Box transfer carts, trunion tools, AJ, FAJ, TOAC, HOFX tools are all manufactured in-house by our experienced personnel.

Assembly Jig

We can build both large and small:
In our 30,000 square foot facility with 17 foot ceilings and full climate control, we can build all sizes of assembly tooling per customer supplied requests or designed in-house.

Hinge Locating Jig

Guaranteed to be in-tolerance and functional tooling.

Vacuum Fixtures

Tool

Machining Capability

  • Dynamic/HighSpeed Machining
  • Full 5 axis capability
  • Seal assembly and leak testing
  • Design services available
+ Learn More ...

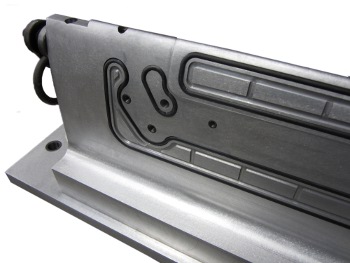

Aluminum Vacuum Milling Fixure

Both Large and Small VACF:
Machined per customer designs or designed internally. We can provide multiple vacuum chambers with base pin-ups for easy set-up and run.

Stretch Form Blocks

Tool

Tooling Expertise

  • Alumium, Steel and Kirksite
  • Wearlon Coating Available
+ Learn More ...

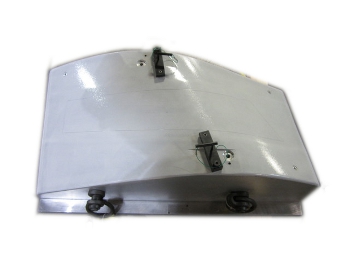

Kirksite Stretch Form Block W/Transfer Pinups

Designed / Machined per the most stringent aerospace standards:
Brilliant surface finishes performed in-house with multiple coating available.

Production and R&D Parts

Tool

R&D and Production Parts Expertise

  • AS9100 Certified / AS9102 FAI compliant
  • ITAR Registered
  • Single Part or Production Volumes
  • Machined/Processes to Stringent Specs
  • Commercial and Military applications
+ Learn More ...

Prototype Bulkhead - 7050 Aluminum in Alodine and Prime 100" x 30" Footprint 5-axis CNC Machined.

Simple to Complex:
We can build but R&D and/or Production parts to the most stringent specification.

Layup Molds

Tool

Machining/Design Capability

  • Materials Include: Aluminum, Invar, Composite, etc.
  • Fixed and Collapsible
  • Design/Engineering Services
  • Hardcoating and Teflon Coating Available
+ Learn More ...

High Temp. Fiberglass Composite Layup Molds:
Designed with shrink factor and overbend to customer specificied cure cycle.
EOP and excess scribes incorporated per customer needs/requirements.

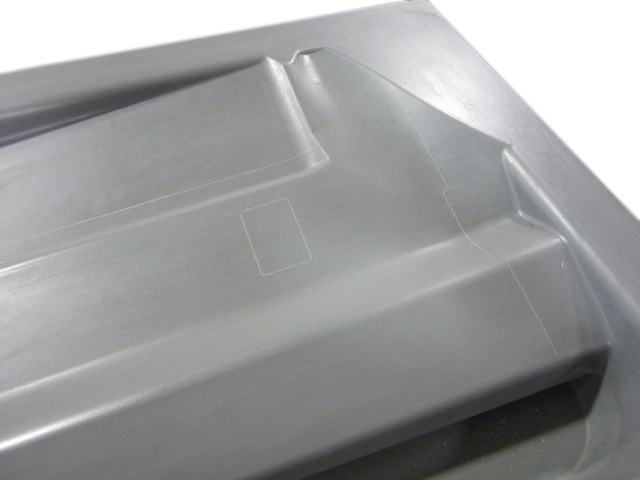

High Temp. Fiberglass Composite Eggcrate Layup Mold:
Dual Cavity tooling for high temperature laminations saving customer cycle times while lowering tooling cost.

Automotive Fixtures & Automation

Tool

Fixture Types

  • Checking Fixtures
  • CMM Holding Fixtures
  • SPC Fixtures
  • Special Machines
  • Inspection and GRR Studies
  • 20+ Years Experience
+ Learn More ...

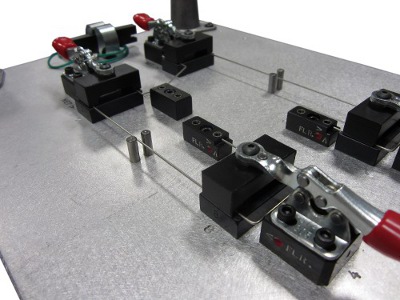

Switch Spring Wire Checking Fixture

Specialty fixtures for all application for switch spring wires to airbag simulation. Let our design team create an inspection solution direct from GD&T to concept to final design. Catia, Unigraphics, 3D PDF and many other formats available.

Full Attribute Checking Fixture (Aluminum with Black Hardcoat)

Full attribute fixtures for stamped and molded parts.

Tooling Experience :
• Checking Fixtures
• Assembly Fixtures (Manual or Automatic)
• NC Blocks and Tooling Components
• Dimensional Verification of Parts
• Low cost wood and synthetic fixtures for prototype parts

Special Machines for Testing, Inspection and Assembly

Facility and Equipment

SHOP

Located at:

  • 44404 Pheonix Dr.
  • Sterling Heights, MI 48314
  • 30,000 Sq.Ft.

+ Learn More ...

5 Axis Machining Centers :
• 1 CNC Machine: HAAS VR-11 - 120 x 40 x 30
• 2 CNC Machine: HAAS UMC 750 - 30 x 20 x 20

3 Axis Machining Centers :
• 2 CNC Machine: HAAS VF9 - 84 x 40 x 30
• 1 CNC Machine: HAAS VF6 - 64 x 32 x 30
• 1 CNC Machine: HAAS VF3 - 40 x 20 x 25
• 2 CNC Machine: HAAS VF2 - 30 x 20 x 20

CNC Lathe :
• 1 CNC Lathe: HAAS ST10Y - Full Turning with 3 Axis Milling

3 Axis Fabrication Centers :
• 1 CNC Plasma Cutter: Torch-Mate - 48 x 72

Manual Machinery:
• 12 Vertical Mills with readouts
• 2 Manual Lathe Machines
• 3 Surface Grinders: Boyer Schultz
• 1 Wet Grinder: Brown and Sharpe
• 2 Welders: MIG & TIG
• 4 Vertical cut off saws
• 1 Horizontal cut off saw

Our facilites include ...
• 24 Hour Temperature-Controlled Manufacturing Facility.

Quality

INSP

Equipment

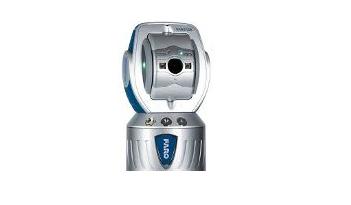

  • Faro Laser Tracker
  • Verisurf Portable Arm CMM
  • Wenzel Automatic DCC CMM
  • Poli Manual CMM
  • 450 square foot, climate contolled, Laboratory
  • Verisurf, CappsDmis and OpenDmis Software
  • AS9100/ISO9001 Certified
+ Learn More ...


Equipment Capabilities :
• 1 Contract Faro Laser Tracker
• 1 Portable Arm CMM: Master3D Gage 1.2 m (4 ft) Volume
• 1 CMM: Wenzel LH87 32" x 27" x 39" Envelope
• 1 CMM: POLI-GLOBO 1500 Horizontal - 120" x 60" x 60" Envelope
• Various hand-held measureing devices

Software Capabilities :
• Verisurf X9 with Native Catia Import
• MasterCam X9
• OpenDmis
• Capps6
• Rhino5

Our facilites include ...
• All laboratory measuring equipment traceable National/International Standards(NIST/NPL)
• 24 Hour Temperature-Controlled and Monitored Inspection Facility.


Contact


Phone:  (586) 726-2449
Fax:       (586) 726-1377

Corporate Address:
44404 Phoenix Dr.
Sterling Heights, MI 48314
USA

General Correspondence:
liberty@liberty-tool.com

Sales:
sales@liberty-tool.com

Program Management:
pm@liberty-tool.com

Estimation - Department:
quotes@liberty-tool.com

Engineering:
cadroom@liberty-tool.com

Quality:
quality@liberty-tool.com

Accounting:
accounting@liberty-tool.com

About Us



Quality Policy:
Liberty Tool, Inc. strives to establish long term business partnerships with our customers through a commitment to deliver quality products on-time while promoting customer satisfaction, compliance to all industry requirements and continual improvement in the effectiveness of our overall business processes. We are committed to continually improving our operations through investment in our employees, customers, suppliers and the overall quality management system.


AS9100/ISO9001 Certified

We are pleased to introduce our company, Liberty Tool, Inc. We design and build checking and assembly fixtures. We have been in business since 1995 with all principles having 20+ years experience in aerospace and automotive tooling. We presently have 15 toolmakers and continuously encouraging education to develop a well-rounded long-term partnership with our employees.


Located in Sterling Heights, MI. our manufacturing area consists of 30,000 square feet. Our services include, design, build, and certification of aerospace tooling, checking fixtures, special machines, automate tooling and CNC machinging of parts and detail work.


Find Us


Supplier Info


Become a Supplier:

Fill out the supplier quality survey downloadable in the link below and return as instructed on the survey:

 Supplier Quality Survey

Current Customers



Aerospace

  • Boeing
  • Cessna / Textron Aviation
  • Honda Aircraft Company
  • Northrop Grumman
  • Lockheed Martin
  • LMI Aerospace
  • Safran Cabin / Zodiac Aerospace
  • plus many more...

Automotive

  • General Motors
  • Fiat/Chrysler
  • Sodecia North America
  • Novares
  • Shiloh Industries
  • plus many more...

Customer Links


Customer Survey Link: Let us know how we are doing!
